Budget-Friendly Systems for a Mid-Sized Enterprises
Available in Two Versions for 30 Keys – Lite and Standard
The KGS 30 series is an efficient, scalable, and cost-effective key management solution designed for medium-sized enterprises, as well as large and distributed facilities requiring a decentralized approach. With its robust design, advanced security features, and multiple enclosure options, the KGS 30 series ensures secure and organized key storage, improving access control and accountability in any business environment.
Key Features for KGS 30 Series
- Compact & Durable Design: Space-saving enclosures built for long-term reliability.
- Flexible Connectivity: Ethernet, RS485, and Wiegand interface support for seamless integration.
- User-Friendly Interface: Intuitive 5″ or 7″ touchscreen display for easy access control.
- Advanced Security: Built-in EmMarin reader (Lite version) or dual 125kHz card readers (Standard & Slim versions).
- Large Database Capacity: Supports up to 50,000 card entries and 50,000 event logs (Standard & Slim versions).
- Modular & Scalable: Connect up to 16 units to a single control panel for centralized management.
- Customizable Enclosures: Choose between Deep and Slim enclosures to fit your specific key storage needs.
KGS 30 Enclosure Options
Deep KGS 30 Enclosure
- Designed for storing keys, large key bundles, cases, and vehicle keys.
- Features a depth of 160 mm and a 60 mm distance to the glass panel, providing ample space for larger items.
Slim KGS 30 Enclosure
- Primarily designed for office keys, ensuring a space-saving solution.
- Features a minimal depth of just 130 mm and a 30 mm distance to the glass panel.
Available Models in the KGS 30 Series

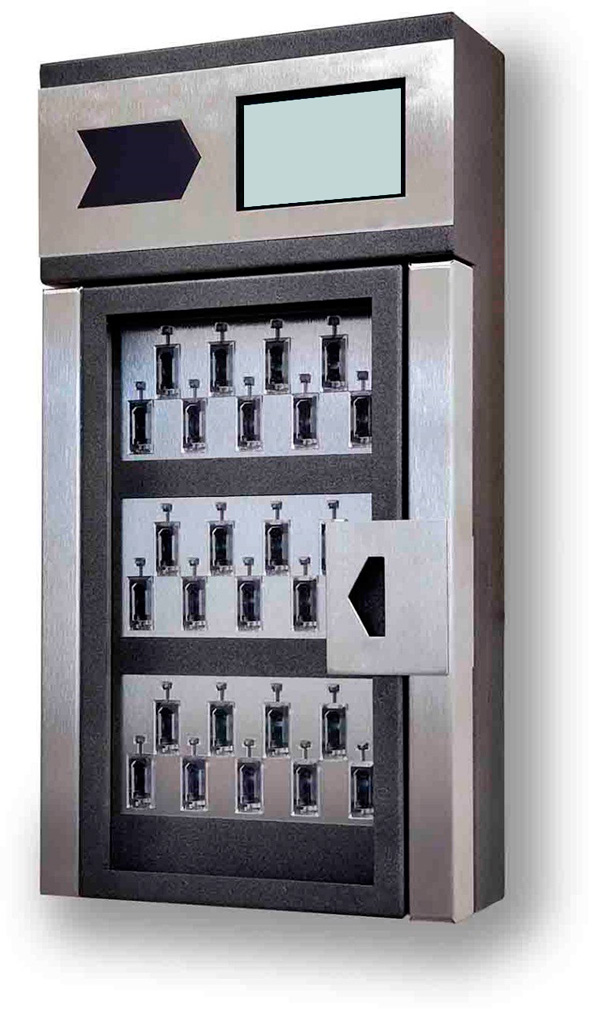

KGS 30Lite – Key Storage System with 30 Keys (Integrated Control Panel).
A compact and budget-friendly solution with an integrated control panel, ideal for medium-sized enterprises.
Includes: Secure enclosure, reliable power supply, 5″ TFT touchscreen display, Ethernet and RS485 connectivity, built-in EmMarin card reader, 30 key fobs, durable loops.
KGS 30 – Key Storage System with 30 Keys (Surface-Mounted Control Panel).
A more advanced solution with an external control panel for enhanced scalability and security.
Includes: Secure enclosure, TFT 7″ touchscreen control panel, two Wiegand interfaces & two 125kHz card readers, Ethernet and RS485 connectivity, 50,000-card database & 50,000 event logs, 30 key fobs and durable loops.
KGS 30Slim – Slim Size Key Storage System with 30 Keys (Surface-Mounted Control Panel).
A space-efficient version of the KGS 30, featuring the smallest depth of just 130 mm, making it ideal for office environments.
Includes: Slim enclosure (130 mm depth, 30 mm glass panel distance), TFT 7″ touchscreen control panel, two Wiegand interfaces & two 125kHz card readers, Ethernet and RS485 connectivity, 50,000-card database & 50,000 event logs, 30 key fobs and durable loops.
KeyGuard Modular System: 3-Module Main Unit
- The control panel can be installed at the bottom or right side of the unit.
- Expandable system – Connect up to 16 units to a single control panel for centralized management.
- The door opens to the left at 180° for easy access.
- In the Slim enclosure, the actual number of keys stored is one less than stated due to space constraints.
Why Choose Our KGS 30 Systems?
- Scalable & Versatile: Suitable for both small office spaces and large, multi-site organizations.
- Cost-Effective: High-end security and features at a competitive price.
- Advanced Security: Reliable access control with multiple authentication options.
- User-Friendly & Intuitive: Simple installation and easy-to-use interface.
- Customizable for Your Needs: Choose from Deep or Slim enclosures and different control panel configurations.
Optimize your office’s key management with the KGS 30 series.
Contact us today to find the best solution for your business!
